Victron energy off grid solar battery system
£4,307.00

Category

Victron Energy off grid system.

(Collection or Installation)

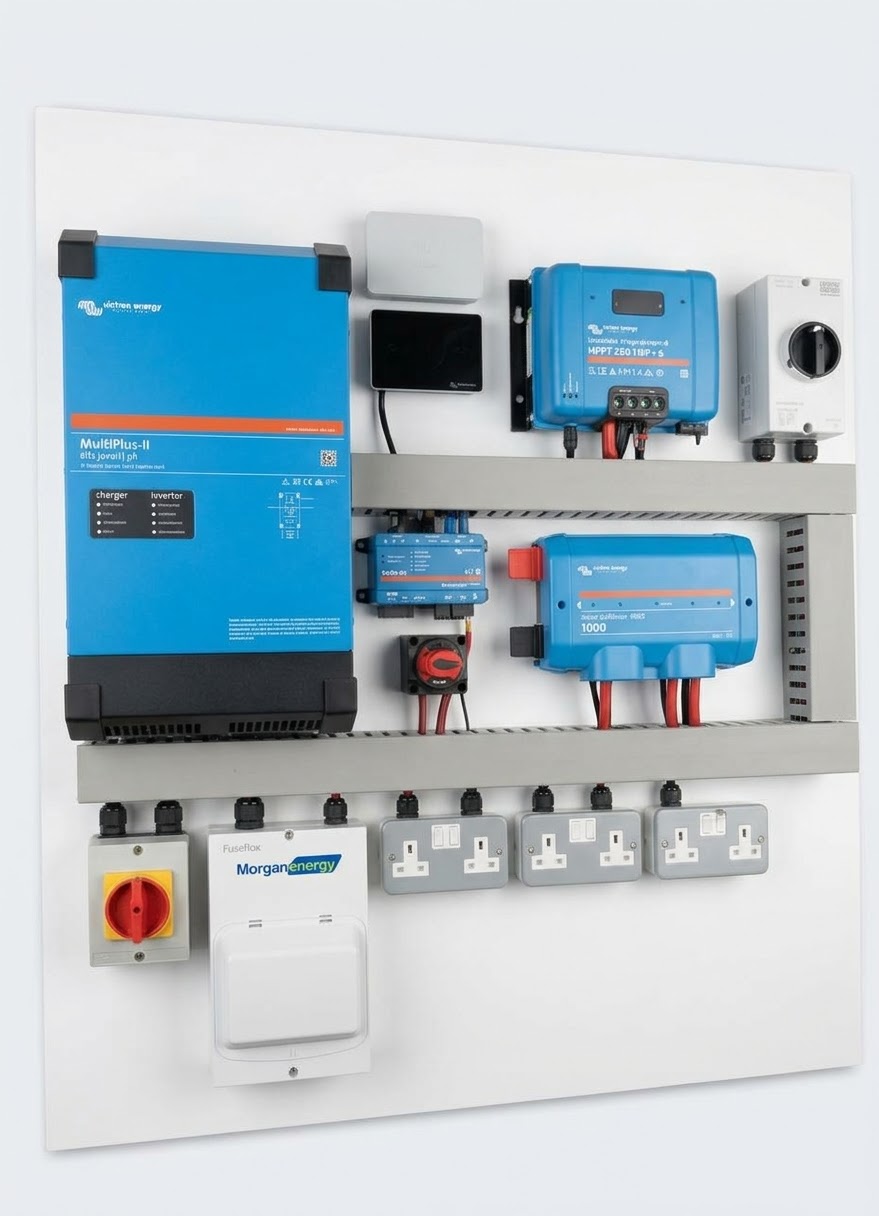

Victron Energy 1kW Solar | 5kWh Battery Off-Grid Power Board

Compact, Pre-Assembled Off-Grid Power | Collect from £4,307
Engineered for ultimate off-grid independence in smaller remote applications, vehicles, and marine craft, this pre-assembled backboard system provides ultra-reliable, clean electricity wherever the mains grid can’t reach. Built exclusively with premium Victron Energy power electronics, a 5kWh DBS Leoch LiFePO4 battery, and two LONGi 505W solar panels (1.01kW total), the unit is pre-wired and bench-tested in Peterborough for true plug-and-play ease of installation.

System Hardware Specifications

  • Solar PV Array: 2× LONGi 505W Ultra-High Output Solar Panels (1.01kW Array)
  • Battery Storage: 1× 5kWh DBS Leoch Lithium (LiFePO4) Battery with Smart BMS
  • Inverter / Charger: Victron Energy MultiPlus-II 48/3000/35-32 (3000VA / 2400W Continuous Output) Pure Sine Wave Inverter/Charger
  • Solar Charge Controller: Victron SmartSolar MPPT 250/60-Tr Controller with Bluetooth monitoring
  • DC Power Distribution: Victron Lynx Distributor 1000 busbar system
  • System Monitoring & Gateway: Victron Cerbo GX system controller & communication gateway
  • AC Output & Circuit Options: Integrated AC consumer unit equipped with 3× double switched sockets and 2× spare ways available to easily add additional AC circuits (e.g. external lighting, water pumps, or direct line feeds).
  • Mounting System Choice: Plastic tubs with ballast (flat ground/roofs) OR heavy-duty aluminium angled rail kits

What Can This Inverter Power? (Customer Power Capability)

  • Continuous Output Power: Delivers 10.4 Amps (2,400 Watts) of continuous 230V mains power.
  • Run-Time Duration: Runs a 1,000W continuous load for ~4.5 hours from a fully charged 5kWh battery without solar input, or runs smaller background loads (e.g. 250W lighting/fridge) for up to 18 hours.
  • Peak Surge Power: Delivers short-term surge capacity up to 5,500 Watts (approx. 24 Amps) to effortlessly start high-draw motor loads like power tools, fridges, or compressors.
  • Everyday Load Examples: Power tools, microwave ovens, kettles, fridges, laptops, lighting, and chargers simultaneously up to 2.4kW total continuous load.

Key System Benefits

  • Pre-Wired Simplicity: Fully assembled on a heavy-duty backboard with DC breakers, busbars, fusing, rotary isolator, and AC distribution ready to go.
  • Versatile Applications: Ideal for remote sheds, garden studios, field shelters, camper vans, and small boats.
  • Collection & Installation Options: Price covers pre-assembled board ready for collection from Peterborough. Full supply and professional on-site installation across our 50-mile Peterborough coverage area available at an additional cost.
